Epson SureColor T5770DR 36" Wide-Format Dual-Roll CAD/Technical Printer - SCT5770DR

$6,455.00 CAD $8,395.00

SPECIAL ORDER ITEM
This product is available upon request only. Please click here for a shipping quote.

Epson  |  SKU: SCT5770DR

Extended Warranties & Service Plans

Tricera offers Epson Preferred Plus Extended Service Plans for eligible printers for customers who want added protection beyond the standard Epson manufacturer’s warranty. Although Epson administers the coverage, Tricera can supply these plans for qualifying models, with options that may extend total warranty protection for up to five years. Coverage generally includes parts and labour, with service based on the plan selected. Extended service plans must be purchased while the original Epson warranty is still active

Our Expert Opinion

A 36″ large-format dual-roll solution with production-class speed, printing A1/D-size prints in as little as 16 seconds with Adobe Embedded Print Engine and UltraChrome XD3 pigment inks. It’s well-suited for architects, engineers, and graphics professionals with demanding technical and colour workflows.

Description

This design changes everything

Epson delivers a first-of-its-kind design that shatters expectations and redefines capability, versatility and efficiency for its class: the SureColor® T5770DR. With a compact footprint and all-front operation, the T5770DR fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, producing technical drawings at production-class speeds with A1/D-size prints in as little as 16 seconds1. Its innovative six-ink set with dedicated Red Ink opens the door to an extraordinary colour gamut for a production printer as well as rich red branding colours. And simple, carefree operation combined with new levels of media flexibility helps users do more using less space—all with a low total cost of ownership (TCO). Add it all up, and this is not just a one-of-a-kind printer—it’s the new benchmark in high-speed CAD and graphics.

    Features & Benefits

    • Incredible speed and performance — delivers crisp, detailed, colourful prints using a reliable 2.64" PrecisionCore® MicroTFP printhead, producing remarkable A1/D-size prints in as little as 16 seconds1
    • Innovative design fits almost any workflow — unique flattop design with complete front operation, simple automatic roll loading and dual roll/take up reel integrated
    • Stunning image quality and precise line detail — vivid UltraChrome® XD3 Ink with Red Ink produces crisp lines and vibrant colours for graphics, signage, blueprints, documents and more

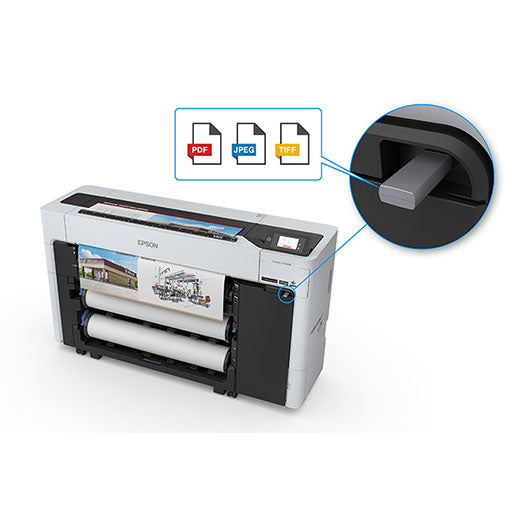

    • Includes Adobe® Embedded Print Engine as a standard option — natively process PDF and PostScript® files for fast and reliable printing
    • Print on a wide range of media for various applications — print on a variety of media, including glossy, technical, bond, matte and specialty medias, and rigid poster board up to 1.5 mm thick

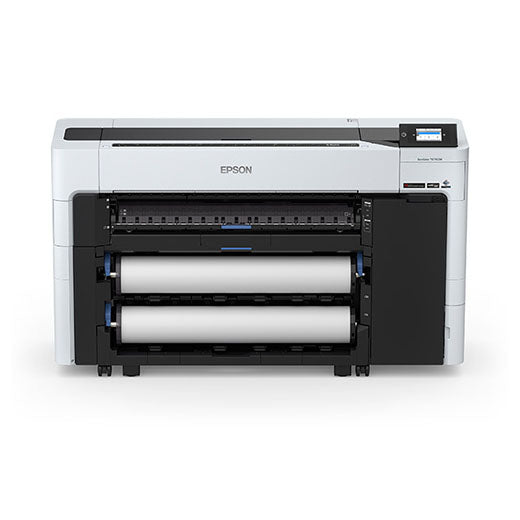

    • Seamless, dual-roll productivity — accommodates two media types or sizes, or use second roll as a take-up reel for roll-to-roll production
    • Easy to use and maintain — configurable 4.3" touchscreen control panel for simple operation, automated routine maintenance and convenient user self-service for long-term operation
    • No assembly required — be up and printing in as little as 30 minutes
    • Versatile connectivity — high-speed USB 3.20 Gigabit Ethernet or Wi-Fi® connectivity (2.4 GHz and 5 GHz) options to fit virtually any production workflow
    • IT and security features — over 28 IT security features for office or remote office locations, including IC card option for user control and tracking, SSD Encryption and IEEE 802.1x
    • Maximize productivity with included Epson® Software Suite and Epson Cloud Solution PORT2 — remotely manage and monitor your printer fleet from convenience of your laptop or smart device

    Eco Features

    • RoHS compliant
    • Recyclable product3
    • Epson America, Inc. is a SmartWay™ Transport Partner4

    What's In The Box

    • SureColor T5770DR Printer
    • Full Set of Initial Ink Cartridges (240 mL C, M, Y, MK, PK, R)
    • Maintenance Box (Pre-Installed)
    • Borderless Maintenance Box
    • 2 Roll Media Adapters (Pre-Installed)
    • Start Here Poster
    • AC Power Cable

    Note: Media is not included with the printer.

    Request Printer and Shipping Quote

    Because of the size and freight requirements of large format printers, online checkout is not available for this item. Please submit the details below and we will prepare a quote for the printer and shipping to your location.

    Our Experts' Alternatives

    At Tricea, we've been Canada's Epson Experts since 1985. We have carefully curated the best alternatives and highlighted the key differences to simplify your shopping experience.

    Epson SureColor T5770DR 36" Wide-Format Dual-Roll CAD/Technical Printer - SCT5770DR
    View details
    Epson SureColor T5770DM 36" Wide-Format Multifunction CAD/Technical Printer - SCT5770DM
    View details
    The Epson SureColor T5475 36" Printer (SCT5475SR) is a wireless wide-format inkjet printer in white and black, featuring a display screen on the right. It's ideal for producing detailed color architectural or engineering blueprints.
    Epson SureColor T5475 36 Inch Printer - SCT5475SR
    View details
    Price
    Price
    $6,455.00 CAD $8,395.00
    $13,535.00 CAD $14,695.00
    $3,365.00 CAD $4,025.00
    Our Experts Opinion
    Our Experts Opinion
    A 36″ large-format dual-roll solution with production-class speed, printing A1/D-size prints in as little as 16 seconds with Adobe Embedded Print Engine and UltraChrome XD3 pigment inks. It’s well-suited for architects, engineers, and graphics professionals with demanding technical and colour workflows.
    This 36″ multifunction printer combines fast A1/D prints (~16 seconds) with integrated high-speed scanning and copying, plus UltraChrome XD3 colour performance. It’s ideal for offices and firms needing both precise output and quick digital capture in one compact, high-productivity solution.
    A powerful 36″ wide workgroup printer that delivers accurate A1/D-size prints in as fast as 22 seconds with durable UltraChrome XD2 pigment inks and PrecisionCore MicroTFP printhead technology. It’s ideal for busy offices and teams demanding reliable technical and graphics output.
    Best For
    Best For
    Professional Dual-roll, Fast, Large Format Prints for Technical and Graphics Outputs
    Professional Dual-roll, Scan Intergrated, Fast, Large Format Prints for Technical and Graphics Outputs
    Efficient Workflow for Technical and Graphics Outputs
    Printer Width
    Printer Width
    36"
    36"
    36"

    Compatible Ink

    View all
